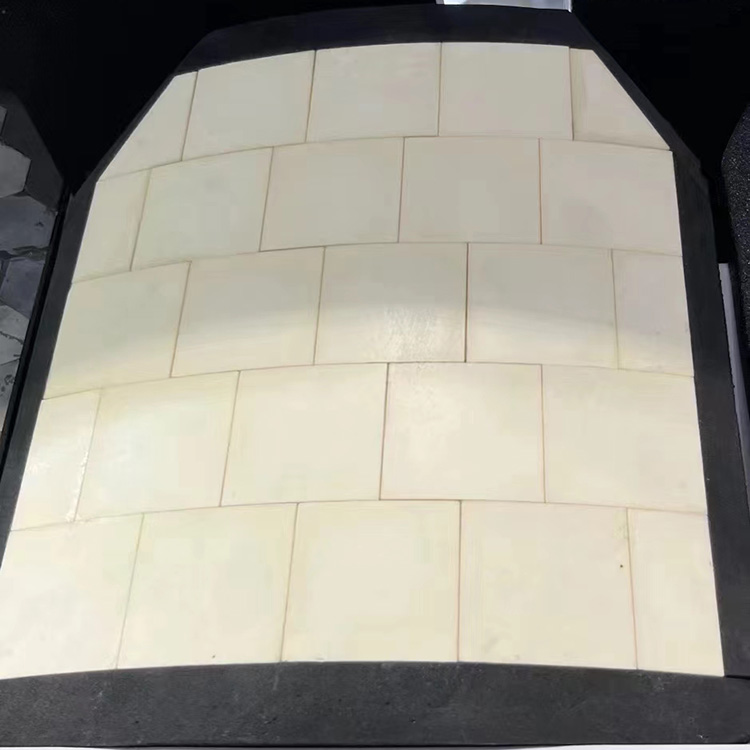

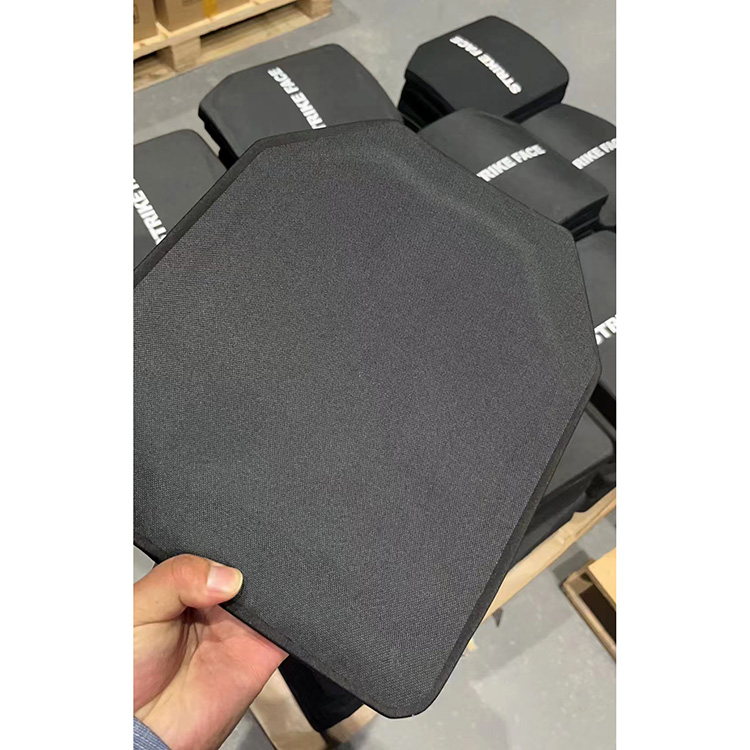

| Name | Tactical equipment plug-in board-silicon carbide board |
| Bulletproof material | Ultra -high molecular polyethylene (PE)+silicon carbide SIC ceramic film |
| color | Black, military green, camouflage, can be customized |
| size | 250*300mm | 250*300mm | 250*300mm |
| Blid area ㎡ | 0.07㎡ | 0.07㎡ | 0.07㎡ |
| Thickness mm | 18mm | 22mm | 16mm |
| Bulletproof level | GA5 (10+8) independent defense | GA6 (10+10) independent defense | 95 rifle (10+6) |
| Weight kgs | 2.10±0.05KG | 2.40±0.05KG | 1.70±0.05KG |
| Execution standard | 《GA141-2010 Police Bulletproof Clothing》 |
| Painting | Bag cloth or pool |
| Shelf life | 8years |
| Intersection | Determine according to the number of orders |
| Performance introduction | • Single curve design fit ergonomics;
• Select ultra -high molecular polyethylene PE+silicon carbide SIC ceramics can provide higher bulletproof levels;
• The corner design is convenient to remove and install the panel;
• Can be matched with bulletproof vest as the front or backboard to improve the bulletproof level, or use it alone as an independent bulletproof board;
• Standardized size 250*300mm can protect the core parts of the body, and can be customized by different sizes;
• Selected waterproof surface cloth or polycase spraying process, wear resistance, aging resistance, anticorrosive, and waterproof, and improve the service life of the plug -in board. |
Remarks: Any size and design can be customized according to the number of orders.
